摘要:[Arduino]ESP32C3对接autMan机器人控制LED灯状态demo,自己写着玩的

ESP32C3对接autMan机器人控制自带的LED灯状态demo,自己写着玩的,

[Arduino]ESP32C3对接autMan机器人控制LED灯状态demo

Arduino写的,后期可以扩展开发控制一些电器之类的。

需要先创建autMan开发者开放接口权限

#include <WiFi.h>
#include <HTTPClient.h>

// WiFi 连接信息
const char* ssid = "wifi帐号";
const char* password = "wifi密码";
const int led0 = 12;
const int led1 = 13;

// API 接口信息
const String authUrl = "http://192.168.0.152:8080/open/auth/token?client_id=XXXXXX&client_secret=XXXXXX";
const String bucketUrl = "http://192.168.0.152:8080/open/buckets?bucket=otto&key=esp32c3";
String token;
unsigned long tokenExpiration = 0;

void setup() {
  Serial.begin(115200);
  pinMode(led0, OUTPUT);
  pinMode(led1, OUTPUT);
  WiFi.begin(ssid, password);

  // 连接到WiFi
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWiFi connected");
}

void loop() {
  if (WiFi.status() == WL_CONNECTED) {
    // 检查是否需要获取新的Token
    if (millis() >= tokenExpiration || token.isEmpty()) {
      getToken();
    }

    // 使用Token获取bucket数据
    if (!token.isEmpty()) {
      getBucketData();
    }
  } else {
    Serial.println("WiFi not connected");
  }

  delay(1000); // 每秒执行一次
}

// 获取Token的函数
void getToken() {
  HTTPClient http;
  int retryCount = 0;
  const int maxRetries = 5;  // 最大重试次数
  bool tokenObtained = false;

  while (retryCount < maxRetries && !tokenObtained) {
    http.begin(authUrl);
    int httpResponseCode = http.GET();

    if (httpResponseCode == 200) {
      String response = http.getString();
      Serial.println("Token response: " + response);

      // 检查响应内容是否包含 code: 200
      if (response.indexOf("\"code\":200") != -1) {
        // 解析 JSON 数据
        int tokenIndex = response.indexOf("\"token\":\"") + 9;
        int tokenEndIndex = response.indexOf("\"", tokenIndex);
        token = response.substring(tokenIndex, tokenEndIndex);
        Serial.println(token);
        int expirationIndex = response.indexOf("\"expiration\":") + 13;
        int expirationEndIndex = response.indexOf(",", expirationIndex);
        String expirationStr = response.substring(expirationIndex, expirationEndIndex);
        tokenExpiration = millis() + (expirationStr.toInt() - 20 * 60) * 1000; // 设置为20分钟有效期

        tokenObtained = true;  // 标记为成功获取
        Serial.println("Token retrieved successfully.");
      } else {
        Serial.println("Received error response, retrying...");
      }
    } else {
      Serial.println("Failed to get token, retrying...");
    }

    http.end();
    retryCount++;
    delay(1000);  // 等待1秒再重试
  }

  if (!tokenObtained) {
    Serial.println("Failed to retrieve token after multiple attempts.");
  }
}



// 获取桶数据的函数
void getBucketData() {
  HTTPClient http;
  http.begin(bucketUrl);
  http.addHeader("Authorization", "Bearer " + token);

  int httpResponseCode = http.GET();
  if (httpResponseCode == 200) {
    String response = http.getString();
    Serial.println("Bucket response: " + response);

    // 解析 JSON 数据中的value值
    int valueIndex = response.indexOf("\"value\":\"") + 9;
    int valueEndIndex = response.indexOf("\"", valueIndex);
    String value = response.substring(valueIndex, valueEndIndex);

    // 控制LED灯
    if (value == "1") {
      digitalWrite(led0, HIGH);
      digitalWrite(led1, HIGH);
    } else if (value == "2") {
      digitalWrite(led0, LOW);
      digitalWrite(led1, LOW);
    } else if (value == "3") {
      blinkLED();
    } else if (value == "4") {
      digitalWrite(led0, HIGH);
      digitalWrite(led1, LOW);
    } else if (value == "5") {
      digitalWrite(led0, LOW);
      digitalWrite(led1, HIGH);
    }
  } else {
    Serial.println("Failed to get bucket data");
  }

  http.end();
}



// LED 闪烁函数
void blinkLED() {
  digitalWrite(led0, HIGH);
  digitalWrite(led1, LOW);
  delay(500);
  digitalWrite(led0, LOW);
  digitalWrite(led1, HIGH);
  delay(500);
}

autMan插件 es5插件源码

check();
function check() {
    if (GetContent()=="开灯"){
    bucketSet('otto', 'esp32c3', '1')
    sendText("已开灯")
    return;
    }
    if (GetContent()=="关灯"){
    bucketSet('otto', 'esp32c3', '2')
    sendText("已关灯")
    return;
    }
    if (GetContent()=="闪灯"){
    bucketSet('otto', 'esp32c3', '3')
    sendText("已闪灯")
    return;
    }
    if (GetContent()=="1开灯"){
    bucketSet('otto', 'esp32c3', '4')
    sendText("LED1已开灯")
    return;
    }
    if (GetContent()=="2开灯"){
    bucketSet('otto', 'esp32c3', '5')
    sendText("LED2已开灯")
    return;
    }
}

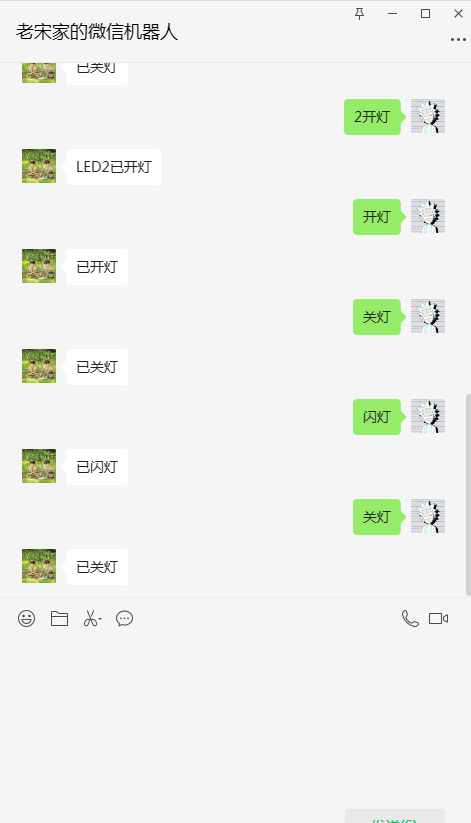

测试结果:
